The SCycleBase constituent responsible for running the cycle. More...

#include <core/include/SCycleBaseExec.h>

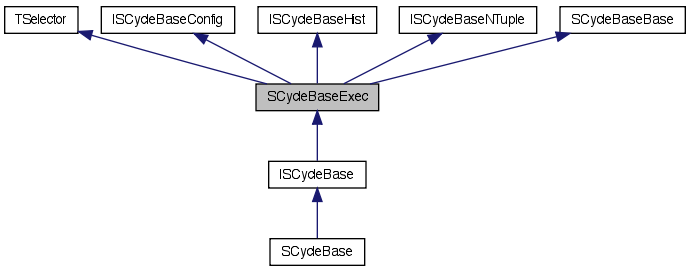

Inheritance diagram for SCycleBaseExec:

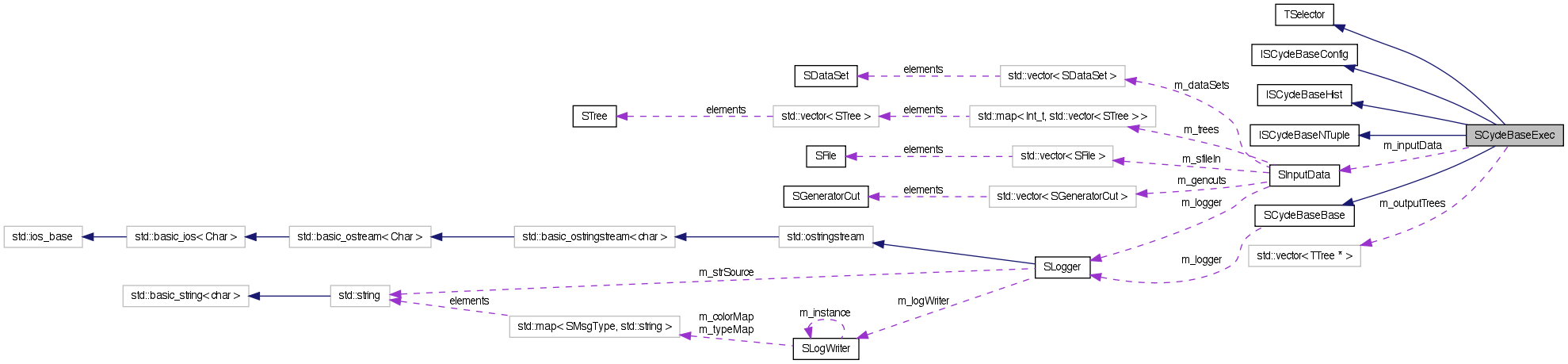

Collaboration diagram for SCycleBaseExec:

Public Member Functions
	SCycleBaseExec ()
	Default constructor.
virtual void	Begin (TTree *)
virtual void	SlaveBegin (TTree *)
virtual void	Init (TTree *main_tree)
virtual Bool_t	Notify ()
virtual Bool_t	Process (Long64_t entry)
virtual void	SlaveTerminate ()
virtual void	Terminate ()
virtual Int_t	Version () const
	Function declaring the version of the selector.
virtual void	BeginCycle ()=0 throw ( SError )
	Initialisation called at the beginning of a full cycle.
virtual void	EndCycle ()=0 throw ( SError )
	Finalisation called at the end of a full cycle.
virtual void	BeginInputData (const SInputData &)=0 throw ( SError )
	Initialisation called on the worker nodes for each input data type.
virtual void	EndInputData (const SInputData &)=0 throw ( SError )
	Finalisation called on the worker nodes for each input data type.
virtual void	BeginMasterInputData (const SInputData &) throw ( SError )
	Initialisation called on the client machine for each input data type.
virtual void	EndMasterInputData (const SInputData &) throw ( SError )
	Finalisation called on the client machine for each input data type.
virtual void	BeginInputFile (const SInputData &)=0 throw ( SError )
	Initialisation called for each input file.
virtual void	ExecuteEvent (const SInputData &, Double_t weight)=0 throw ( SError )
	Function called for every event.

Detailed Description

The SCycleBase constituent responsible for running the cycle.

The code executing the cycle has been moved to this class. The idea is that the class only accesses the other parts of SCycleBase through the interfaces. So various parts (like SCycleBaseNTuple for ARA) can be exchanged for another one.

Version:

Revision:: 318

Definition at line 47 of file SCycleBaseExec.h.

Constructor & Destructor Documentation

SCycleBaseExec::SCycleBaseExec ( )

Default constructor.

The constructor just initialises some member variable(s).

Definition at line 40 of file SCycleBaseExec.cxx.

References REPORT_VERBOSE, and SCycleBaseBase::SetLogName().

Member Function Documentation

void SCycleBaseExec::Begin ( TTree * ) [virtual]

Definition at line 47 of file SCycleBaseExec.cxx.

References BeginMasterInputData(), REPORT_FATAL, REPORT_VERBOSE, ISCycleBaseConfig::SetConfInput(), ISCycleBaseHist::SetHistOutput(), ISCycleBaseNTuple::SetNTupleOutput(), and SError::what().

virtual void SCycleBaseExec::BeginCycle ( ) throw ( SError ) [pure virtual]

Initialisation called at the beginning of a full cycle.

Analysis-wide configurations, like the setup of some reconstruction algorithm based on properties configured in XML should be done here.

Examples:: FirstCycle.h, and SecondCycle.h.

Referenced by SCycleController::ExecuteNextCycle().

virtual void SCycleBaseExec::BeginInputData ( const SInputData & ) throw ( SError ) [pure virtual]

Initialisation called on the worker nodes for each input data type.

This is the place to declare the output variables for the output TTree(s). This is also the earliest point where histograms can be created.

Examples:: FirstCycle.h, and SecondCycle.h.

Referenced by SlaveBegin().

virtual void SCycleBaseExec::BeginInputFile ( const SInputData & ) throw ( SError ) [pure virtual]

Initialisation called for each input file.

This is the place to connect the input variables to the branches of the input tree(s).

Examples:: FirstCycle.h, and SecondCycle.h.

Referenced by Notify().

virtual void SCycleBaseExec::BeginMasterInputData ( const SInputData & ) throw ( SError ) [inline, virtual]

Initialisation called on the client machine for each input data type.

This function is mostly a placeholder for now. There is not much one can do here yet...

Examples:: FirstCycle.h.

Definition at line 112 of file SCycleBaseExec.h.

Referenced by Begin().

virtual void SCycleBaseExec::EndCycle ( ) throw ( SError ) [pure virtual]

Finalisation called at the end of a full cycle.

This is the last function called after an analysis run, so it could be a good place to print some statistics about the running.

Examples:: FirstCycle.h, and SecondCycle.h.

Referenced by SCycleController::ExecuteNextCycle().

virtual void SCycleBaseExec::EndInputData ( const SInputData & ) throw ( SError ) [pure virtual]

Finalisation called on the worker nodes for each input data type.

Mainly used for printing input data statistics, or normalising efficiency histograms by hand.

Examples:: FirstCycle.h, and SecondCycle.h.

Referenced by SlaveTerminate().

virtual void SCycleBaseExec::EndMasterInputData ( const SInputData & ) throw ( SError ) [inline, virtual]

Finalisation called on the client machine for each input data type.

This function is mostly a placeholder for now. There is not much one can do here yet...

Examples:: FirstCycle.h.

Definition at line 118 of file SCycleBaseExec.h.

Referenced by Terminate().

virtual void SCycleBaseExec::ExecuteEvent	(	const SInputData &	,
		Double_t	weight
	)		throw ( SError ) `[pure virtual]`

Function called for every event.

This is the function where the main analysis should be done. By the time it is called, all the input variables are filled with the contents of the actual event.
